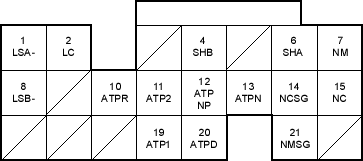

Terminal number

Wire colour

Terminal name

Description

Signal

1*3

WHT/BLK

LSA- (A/T PRESSURE CONTROL SOLENOID VALVE A-SIDE)

Ground for A/T pressure control solenoid valve A

2*3

YEL/BLU

LC (TORQUE CONVERTER CLUTCH SOLENOID VALVE)

Drives torque converter clutch solenoid valve

With lock-up ON: battery voltage

With lock-up OFF: about 0 V

4*3

GRN/WHT

SHB (SHIFT SOLENOID VALVE B)

Drives shift solenoid valve B

With engine running in 1st, 2nd gears: battery voltage

With engine running in 3rd, 4th gears: about 0 V

6*3

BLU/BLK

SHA (SHIFT SOLENOID VALVE A)

Drives shift solenoid valve A

With engine running in 2nd, 3rd gears: battery voltage

With engine running in 1st, 4th gears: about 0 V

7*3

WHT/RED

NM (MAINSHAFT SPEED SENSOR)

Detects mainshaft speed sensor signals

With engine running: pulses

8*3

BRN/WHT

LSB - (A/T PRESSURE CONTROL SOLENOID VALVE B-SIDE

Ground for A/T pressure control solenoid valve B

9*3

RED

ATPD3 (TRANSMISSION RANGE SWITCH D3 POSITION)

Detects transmission range switch D3 position signal

In D3 position: about 0 V

In any other position: about 5 V or battery voltage

10*3

WHT

ATPR (TRANSMISSION RANGE SWITCH R POSITION)

Detects transmission range switch R position signal

In R position: about 0 V

In any other position: about 5 V or battery voltage

11*3

BLU

ATP2 (TRANSMISSION RANGE SWITCH 2 POSITION)

Detects transmission range switch 2 position signal

In 2nd position: about 0 V

In any other position: about 5 V or battery voltage

12*3

BLU/WHT

ATPNP (TRANSMISSION RANGE SWITCH NEUTRAL/PARK POSITION)

Detects transmission range switch Neutral/Park position signal

In Park or Neutral: about 0 V

In any other position: about 5 V or battery voltage

13*3

RED/BLK

ATPN (TRANSMISSION RANGE SWITCH NEUTRAL/PARK POSITION)

Detects transmission range switch Neutral position signal

In Neutral: about 0 V

In any other position: about 5 V or battery voltage

14*3

GRN

NCSG (COUNTERSHAFT SPEED SENSOR GROUND)

Ground for countershaft speed sensor

15*3

BLU

NC (COUNTERSHAFT SPEED SENSOR)

Detects Countershaft speed sensor signals

With ignition switch ON (II), and front wheels rotating: battery voltage

19*3

BRN

ATP1 (TRANSMISSION RANGE SWITCH 1 POSITION)

Detects transmission range switch 1 position signal

In 1sr position: about 0 V

In any other position: about 5 V or battery voltage

18*3

BLU/YEL

ATPFWD (TRANSMISSION RANGE SWITCH D3/D POSITION)

Detects transmission range switch D3/D position signal

In D3 or D position: about 0 V

In any other position: about 5 V or battery voltage

20*3

YEL

ATPD (TRANSMISSION RANGE SWITCH D POSITION)

Detects transmission range switch D position signal

In D position: about 0 V

In any other position: about 5 V or battery voltage

21*3

WHT/GRN

NMSG (MAINSHAFT SPEED SENSOR GROUND)

Ground for mainshaft speed sensor
