Front Suspension

Knuckle/Hub/Wheel Bearing Replacement

 18-11

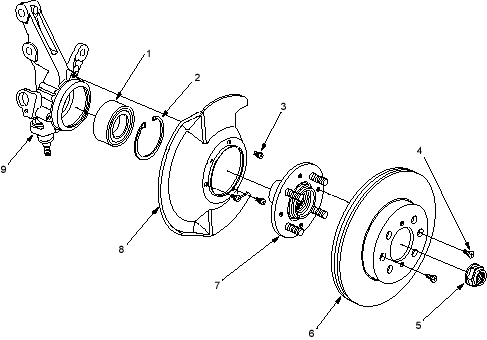

Exploded View
  1. WHEEL BEARING, Replace.
  2. SNAP RING
  3. 6 mm FLAT WASHER, Replace.
  4. FLAT SCREW, 6 x 1.0 mm, 9.8 Nm (1.0 kgf/m, 7.2 lbf/ft)
  5. SPINDLE NUT, 22 x 1.5 mm, 181Nm (18.5kgf/m, 134 lbf/ft), Replace.
  6. BRAKE DISC
  7. HUB

    Check for deformation, damage and cracks.

  8. SPLASH GUARD

    Check for corrosion, deformation and damage.

    Replace if rusted.

  9. KNUCKLE

    Check for deformation and damage.
