Conventional Brake Components

Parking Brake Cable Replacement

 19-50

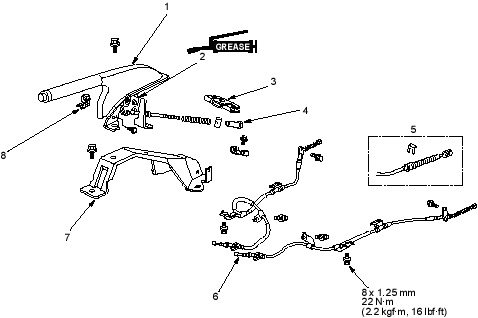

Exploded View
  1. PARKING BRAKE LEVER

    Check for smooth operation.

  2. (Sliding surface)
  3. EQUALISER
  4. ADJUSTING NUT
  5. REAR DISC BRAKE
  6. PARKING BRAKE CABLE,

    Check for faulty movement.

  7. PARKING BRAKE LEVER BRACKET
  8. PARKING BRAKE SWITCH
